Sale!

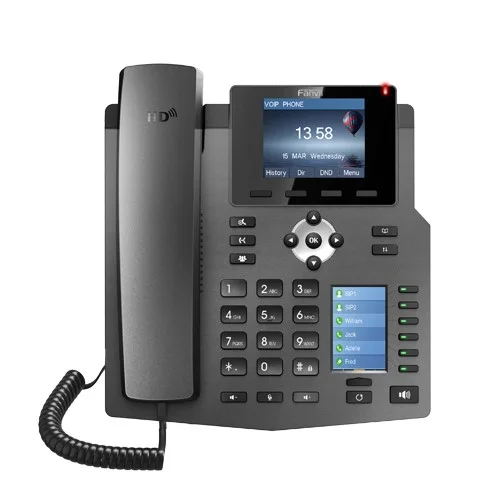

X4 | Fanvil Executive POE IP Phone

৳ 6,300.00

Now X4G Gigabit Model Available

#DSS key-mapping LCD colour screen – 6 DSS keys
#2.8 inch (320 x 240) LCD colour screen
#Fast Ethernet with PoE enabled
#Elegant design with environmentally friendly packaging
#High interoperability – compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Category:

Description

The X4  is a feature-rich sip phone for business. The 4-Line IP Phone has been designed by pursuing ease of use in even the tiniest details. Dual 10/100 Mbps(X4G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. Delivering a superb sound quality as well as rich visual experience. With second DSS color screen, the IP Phone supports up to 30 DSS keys which improve work efficiency. Using standard encryption protocols to perform highly secure remote provisioning and software upgrades.

Fanvil X4 Technical Specification

4 SIP Lines
HD Voice
PoE Enabled
2 LCD Colour Screens (Main + DSS)
Handset(HS) / Hands-free (HF) / Headphone(HP) mode
(EHS support for Plantronics headsets)
Intelligent DSS Keys
Desktop / Wall-mount installation
Optional External Power Supply
Economical and Environmental friendly package
Industrial Standard Certifications: CE/FCC

Call Features
Call out / answer / reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial/Auto-Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Hot-Desking

Phone Features
Phonebook (500 entries)
Remote Phonebook (XML/LDAP)
Call log (100 entries, in/out/missed)
Black/White List Call Filtering
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronisation
Action URL / Active URI

Audio
HD Voice Microphone/Speaker (Handset/Hands-free, 0 ſġ7KHz
Frequency Response)
Wideband ADC/DAC 16KHz Sampling
Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Wideband CODEC: G.722
Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode,
96ms tail-length
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking
Physical: 10/100Mbps(X4), 10/100/1000Mbps (X4G) Ethernet, dual
bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x
VPN: L2TP (Basic Unencrypted) / OpenVPN
VLAN
QoS

Protocols
SIP2.0 over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
PPPoE
802.1x
L2TP (Basic Unencrypted)
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR069
RFCs
354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976
/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
5865
Deployment & Maintenance
Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR069
Web Management Portal
Web-based Packet Dump
Configuration Export / Import
Phonebook Import/Export
Firmware Upgrade
Syslog

Physical Specifications
Main LCD x1: 2.8 inch (320×240) LCD colour screen
DSS key-mapping LCD x1: LCD colour screen
Keypad: 38 keys, including:
– 4 Soft-keys
– 6 Function keys
– 5 Navigation keys
– 12 Standard Phone Digits keys
– 3 Volume Control keys, Up/Down/Mute(Microphone)
– 1 Hands-free key
– 6 DSS Keys with tri-colour LED
– 1 Page-Jump/Configuration (PJC) key
HD Hands-free Speaker (0 ſġ7KHz) x1
HD Hands-free Microphone (0 ſġ7KHz) x1
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
ͻRJ9 Phone Jacket x2: Handset x1, Headphone x1
RJ45 Ethernet Jacket x2: Network x1 (802.3AF POE Class 2 Enabled),
PC x1 (Bridged to Network)
Main Chipset: Broadcom
DC Power Input: 5V/1A
Power Consumption: (X4) Idle – ſ 1.3W, Peak – ſ4.3W
(X4G) Idle – ſ 1.7W, Peak – ſ5.7W
Working Temperature: 0 ~ 40ɗ
Working Humidity: 10 ſ 65%
Dual-Functional Back Rack x1: Desktop Stand / Wall-mount
Colour: Black
Package Dimensions: 285 x 270 x 65mm (W x H x L)
