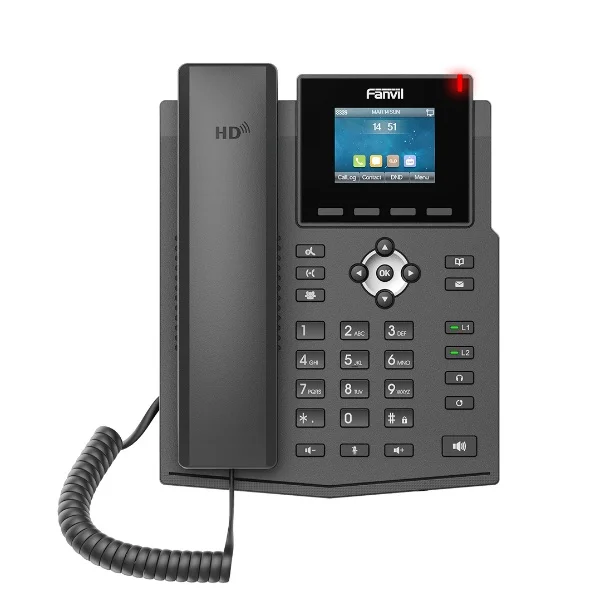

Fanvil’s new X3S series including X3S, X3SP and X3G take entry-level IP phones to a level never achieved before. Making full-use of high-quality materials, plus an extra-large 320×240 2.4 inch (X3G: 2.8 inch) color LCD, it offers a smoother user experience, much more visual information at a glance, plus HD Voice characteristics. Dual 10/100 Mbps(X3G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. The X3S series supports two VoIP accounts, simple, flexible and secure installation options, Open VPN. It also operates with SRTP/ HTTPS/ TLS, 802.1x. As a very cost-effective and powerful IP solution, the X3SP maximizes productivity in both small and large office environments.
2.4″/2.8″ Color Screen, Smart and Friendly User InterfaceThe new X3S/G combines the advantages of existing enterprise phone UI design experience
with color screen. The UI appearance and operating experience have a qualitative leap.
Support EHS Wireless HeadsetSupport EHS Wireless Headset, Professional Enterprise VoIP phone.
Web Page with Mobile PhoneScan X3S/G screen’s QR code to get
into web page. Web page access with mobile phone at anytime, anywhere
Phone HotspotSeveral phones share one number from server, and each phone has its extension
number to contact/transfer/conference others.
|Call Features||Call out/answer/reject | Mute/unmute (microphone) | Call Hold/Resume/Waiting/Forwarding/Transfer/Parking/Pick-up | Redial|
|Display||2.4/2.8 inch (320×240) color-screen LCD|
|Interfaces||Physical: 10/100 Mbps LAN | IP Configuration: Static/DHCP/PPPoE | VLAN and QoS|
|Phone Features||Intelligent Phonebook (up to 500 entries) | Remote Phonebook via XML/LDAP | Call log (300 entries total, in/out/missed) | Network Time Synchronization | Multi-language support in screen and web UI|
|Audio Features||HD Voice Microphone/Speaker | Mixed-Signal (ADC/DAC) Wideband (CODEC: G.722) in 16 KHz Sampling rate | Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB | Full-duplex Acoustic Echo Canceller | Voice Activity Detection, Comfort Noise Generation, Background Noise Estimation and Noise Reduction|
|Supported Protocols||SIP2.0 over UDP/TCP/TLS | RTP/RTCP/SRTP | Network Access Control: 802.1x | L2TP (Unencrypted) | OpenVPN | SNTP | FTP/TFTP/HTTP/HTTPS | TR069|
|Keypad||32 keys: 4 Soft-keys, 12 Standard Phone Digits keys, 5 Navigation keys, 2 Line keys (tri-color LED), 5 Function keys, 3 Volume Control keys for up/down/mute (Microphone), 1 Hands-free|
|Physical Specifications||1x RJ9 Handset wire and 1x 1.5 m CAT5 Cable | 2x RJ9 Phone Jacket: 1x Handset, 1x Headphone | 2x RJ45 Ethernet Jacket: 1x Network (802.3AF POE Class 1 Enabled), 1x PC (Bridged to Network) | Broadcom Chipset | DC Power Input: 5V/600mA|
