Description

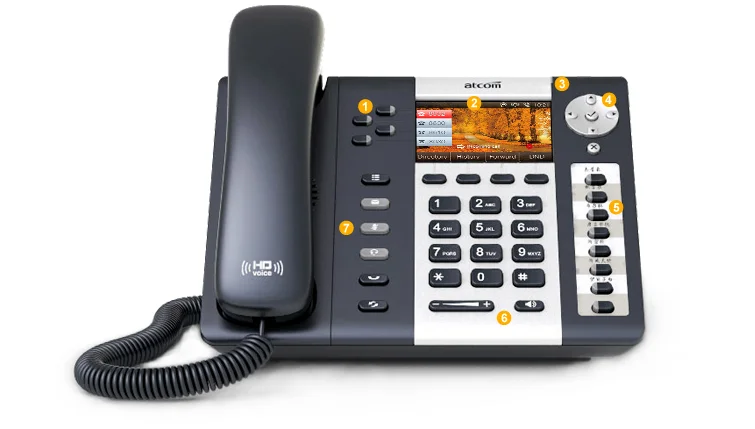

Management Level IP Phone
A48 designed by “efficiency of working, HD voice, visual operation, exquisite detail”, is a 32 SIP account high-end management level business phone special for managers and professionals. It incorporates 3.2 inch full view TFT color LCD, integrated 8 BLF keys, support dual-port Gigabit Ethernet, PoE, EHS wireless headset and dialing expansion module ports”. It’s the flagship in Management Level IP Telephone with feathers of high-power loudspeaker hands-free, 9- party conference and higher level of ZRTP encryption. A48WAC supports 802.11AC protocol, 2.4G+5G dual band,integrate two 5DB high gain antennas. A48W supports 802.11G protocol 2.4G band, built-in 5DB high gain antenna.
Basic functions
3.2″ TFT LCD, 462*278 Pixel, 32 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute, DND, Local 9-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 entries), Direct IP call without SIP proxy, Black list, Dialed/Received/Missed/Forward call (total 400), Call Center Headsets mode,support EHS headset.
Quick to use features
25 Programmable keys; One key reach to the menu; One key to read phone information; BLF quick setting; Support phone book intelligent search; Dial assistant.
IP PBX Features
Supports Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording.
Mult-language
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish ,Hebrew
Advanced Features
Multicast, LDAP address book, XML remote address book, Action URL
Audio Features
10 (built-in+customized) ring tones, 8 levels adjustable volume + mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC.
Network Features
IPv4 & IPv6, VLAN, LLDP, OpenVPN, IEEE802.1X, STUN Intranet penetration,Rport; SIP connection mode: proxy mode, P2P direct mode, DNS SRV(RFC3263), 3 DTMF modes: In-band, RFC2833, SIP INFO; Built-in HTTP / HTTPS web server, LAN / PC: bridging mode, web capture function, PC port capture package function, Syslog.
IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS.IEEE802.11i (WPA, WPA2) authentication,WPA/WPA2-Enterprise 802.1X EAP-PEAP,A48W support 2.4GHz based on 802.1n, A48WAC support 2.4G and 5G based on 802.11Ac
Security
TLS、HTTPS、SRTP protocol (RFC3711), ZRTP(special version), support ‘Accept trusted server only’, support information verification mechanism MD5/MD5-SESS, support AES encryption algorithm (profile encryption), support four level phone lock, administrator/user hierarchic pattern
Configuration
Plug and Play Configuration: implemented base on server, manual configurate: local WEB page configuration, LCD user interface configuration.
Batch deployment
HTTPS / HTTP / FTP / TFTP / RPS / PnP / DHCP Option 66, TR069, WEB import and export configuration templates, configuration file batch generation tool, periodic testing and updating
Physical
Power Interface: DC 5V-2A, PoE power supply: IEEE 802.3af Class 2 2x RJ45 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack. 1 status indicator, 4 line keys, 4 soft keys, 5 navigation keys, 1 volume keys, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free)
Temperature and Humidity
Operating temperature: -10 ~ 50℃
Storage temperature: -10 ~ 50℃
Operating humidity: 10 ~ 90%
Storage temperature: -10 ~ 50℃
Operating humidity: 10 ~ 90%
Packaging information
Qty/CTN: 10 PCS, G.W/CTN: 15KG, Giftbox size: 325mm(L)*210mm(W)*80mm(H) Carton Meas: 425mm(L) *415mm(W) *345mm(H)
Certifications
CE: EN60950 FCC: Part15
